KR211 KR214

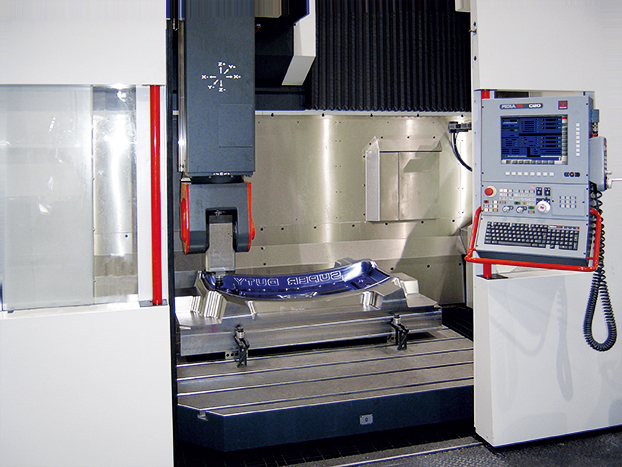

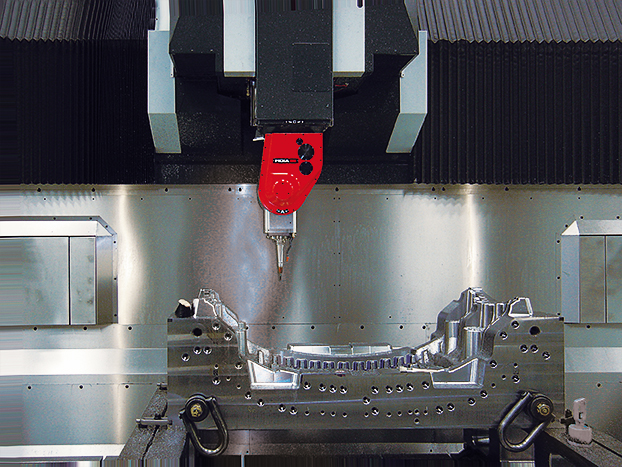

Machining of large dies and extra-dimensioned components are carried out efficiently by the KR configurations. The use of the 6th axis as rotary workpiece table guarantees max accessibility from all sides. Head and table combined rotations are automatically handled by the NC by rotating the system coordinates.

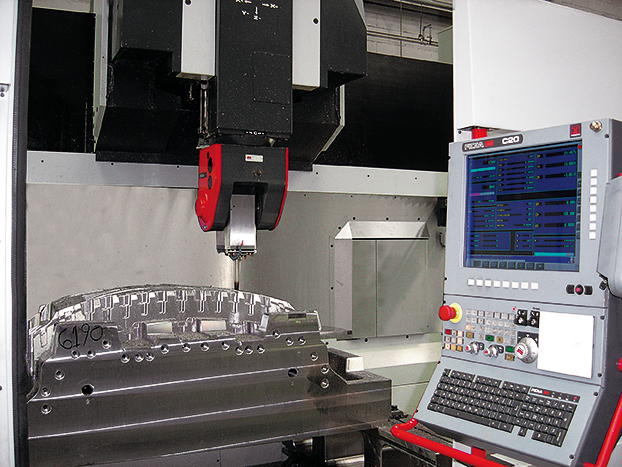

In just one placement it is possible to operate on a such working area that is usually offered only by bigger gantry machines.
Brochure

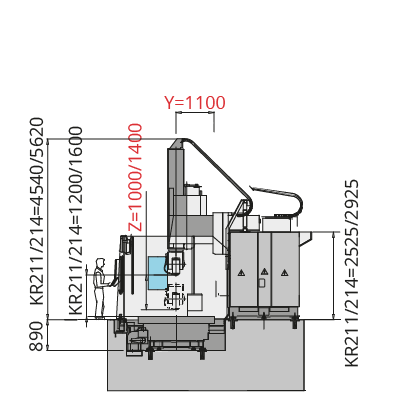

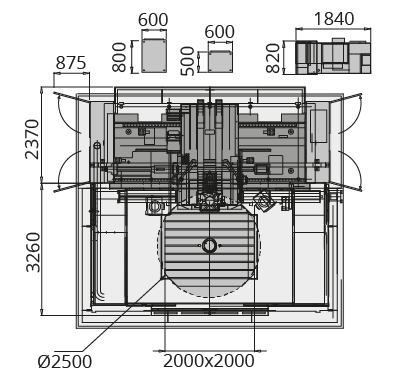

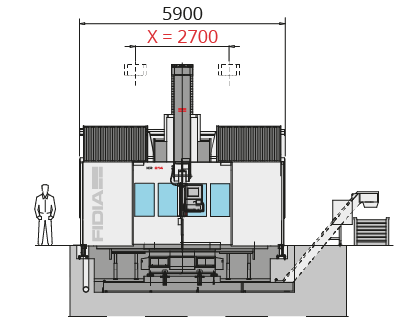

Features and layout KR211 KR214
KR211 | KR214 | ||
Linear axis travel | |||
X (*) | 2700 mm | ||
Y (*) | 1100 mm | ||
Z | 1000 mm | 1400 mm | |
Linear axis speed | X | Y | Z |
50 m/min (1968 ipm) | 40 m/min (1575 ipm) | 30 m/min (1181 ipm) | |
Positioning accuracy | |||
X Y Z | ± 0,006 ± 0,005 ± 0,004 mm | ||
Work-piece table: U axis | |||
Dimensions | 2000 x 2000 mm (78.7” x 78.7”) | ||
T-Slots | 28 mm pitch 200 mm (8”) | ||
Loading capacity | 12000 kg (26400 lbs) | ||
Clamping torque | 35000 Nm | ||
Driving torque | 21000 Nm | ||
Tool magazine | |||
No of positions | 42 - 84 | ||
Weight | |||
38000 kg (83774 lbs) | 38500 kg (84877 lbs) |
(*) +150 mm rotating the C axis with vertical spindle
