Open House 2018

29 November - 1 December

Forlì | Via Balzella 76

Fidia's Partners at Open House:

GTF4015/RH-7600

Powerful Gantry type milling machine with a head change and spindle cartridge change system. Lot of two machines acquired by the SKODA Volkswagen Group for their mould & die workshop.

Main characteristics:

Linear axis travel: X 7600, Y 4000, Z 1500 mm
M5H/75-03: 5-axis milling head with 75 kW - 3.000 1/min spindle - ISO50
M5S R/55-24: 5-axis milling head with 55 kW - 24.000 1/min spindle - HSK63A
E/35-20G: 35 kW - 20.000 1/min electrospindle cartridge - HSK63A
M3A/45-04: 45 kW - 4.000 1/min mechanical vertical extension - ISO50
MRH/24-02: 24 kW - 2.000 1/min orthogonal extension for horizontal machining - ISO50
HCM/M6: 4 station head change magazine and 6 position spindle cartridge magazine.

GTF3515/QS-4500

Universal Gantry type milling machine with a rack and pinion drive on all axes and new M5S milling head. Lot of two machines sold for plastic injection moulding.

Main characteristics:

Linear axis travel: X 4500, Y 3500, Z 1500 mm
M5S/30L-24: New 5-axis milling head with a “long spindle nose” 30 kW - 24.000 1/min - HSK63A
New rack and pinion RAM, Z travel extended to 1500mm

GTF2212/QA-4500

Gantry milling machine with dust suction system on the spindle and for the working volume, with high pressure system. Lot of two machines sold for aerospace applications using composite and technologically advanced materials.

Main characteristics:

Linear axis travel: X 4500, Y 2200, Z 1200 mm
M5A/46-24G: 5-axis milling head with 46 kW - 24.000 1/min spindle - HSK63A – grease lubrication
VMS/46-24G: Spindle vibration monitoring system
DRP/M5A-02: Mechanical dust suction device on M5A head
DRS/M5A-AX-700: ATEX Zone 22 dust suction system

GTF2820/RA-6000

Gantry milling machine with dust suction system on the spindle and for the working volume, with high pressure system. Sold for aerospace applications, machining composite materials and other technologically advanced materials.

Main characteristics:

Linear axis travel: X 6000, Y 2800, Z 2000 mm
M5A/55-24: 5-axis milling head with 55 kW - 24.000 1/min spindle - HSK63A
VMS/55-24: Spindle vibration monitoring system M5A/55-24
DRP/M5A-02: Mechanical dust suction device on M5A head
DRS/M5A-AX-11 KW: ATEX Zone 22 dust suction system

D321

Ultra compact Gantry milling machine, sold for the production of moulds&dies and prototypes.

Main characteristics:

Linear axis travel: X 3000, Y 2200, Z 1100 mm
M5A/55-24: 5-axis milling head with 55 kW - 24.000 1/min spindle - HSK63A

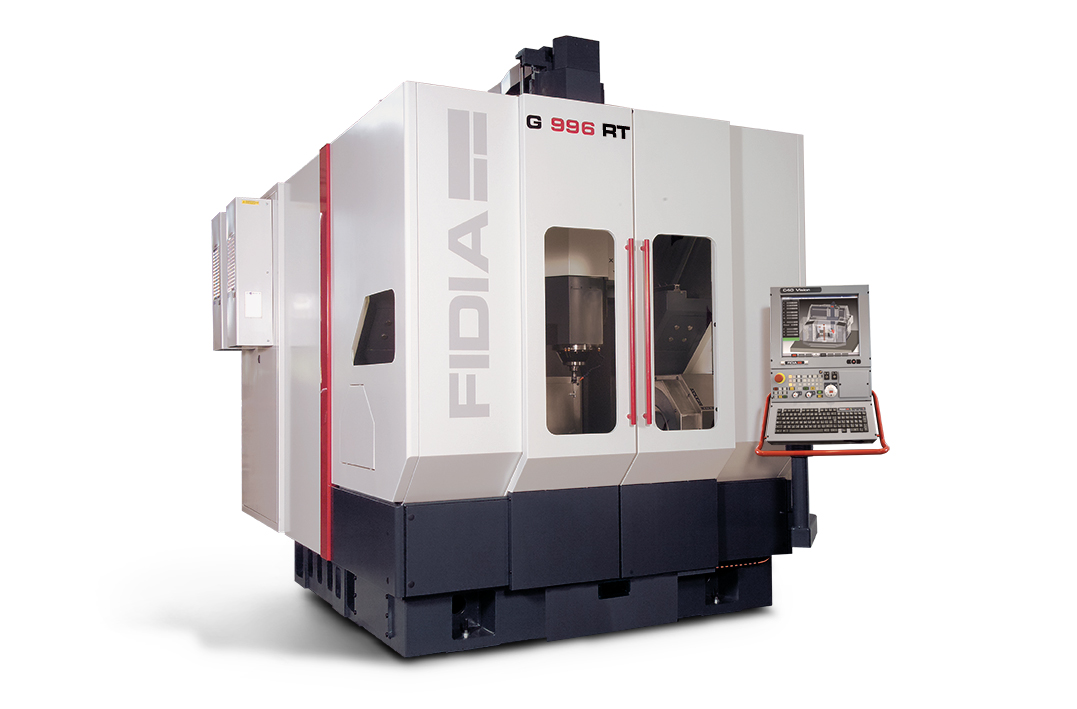

G996/RT-1000

Compact upper gantry milling system characterized by its impressive strong monolithic structure.

Main characteristics:

Linear axis travel: X 850, Y 950, Z 600 mm
M3A/30-24: Milling equipment with 30 kW - 24.000 1/min spindle HSK63A
TRT/P-1000: 4th & 5th axis rotary-tilting table, D=1000/800 mm

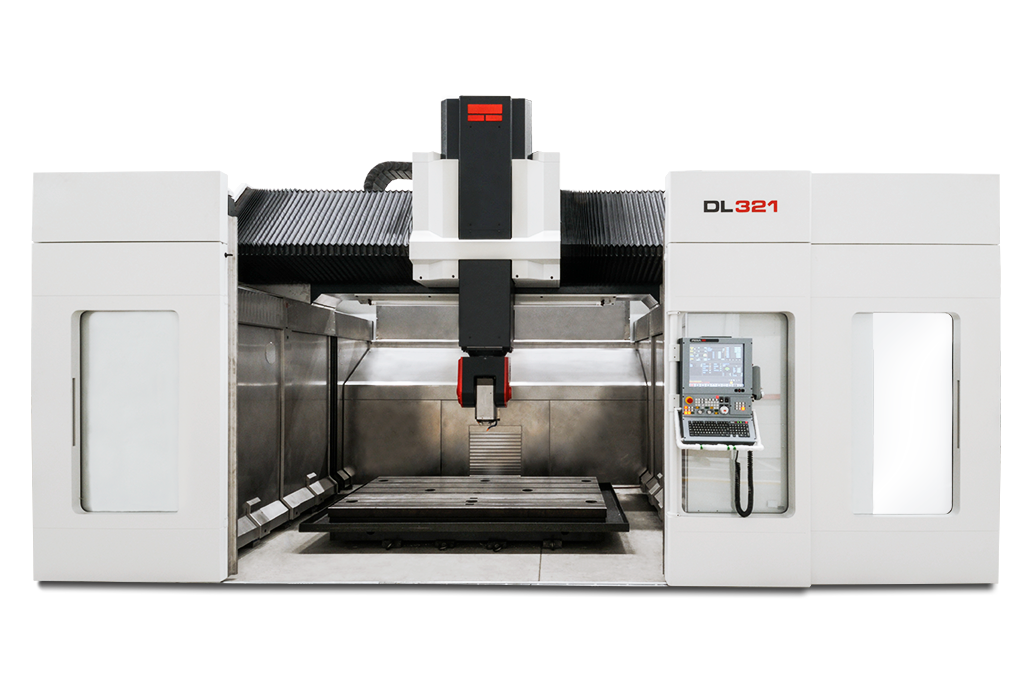

DL321

Ultra compact Gantry milling machine with linear motors. Part of a lot of twenty machines sold to a major mould & die manufacturer.

Main characteristics:

Linear axis travel: X 3200, Y 2200, Z 1250 mm
M5A/55-24: 5-axis milling head with 55 kW - 24.000 1/min spindle - HSK63A

HS664

Compact milling machine with roto-tilting table for the milling of small dimension parts.

Main characteristics:

M3A/25-24: Milling head with 25kW - 24.000 1/min spindle - HSK63E
Linear axis travel: X 600, Y 560, Z 400 mm
TRT/L-570: Rotating and tilting table, 4th and 5th axes, max. diameter of part 570mm
